What Is 1060 Aluminum Sheet?
1060 aluminum sheet is a commercially pure aluminum alloy with a minimum aluminum content of 99.6%. It belongs to the 1xxx series (pure aluminum series) and is one of the most widely used grades in industrial and commercial applications worldwide. The “1060” designation follows the Aluminum Association (AA) standard, where the last two digits “60” indicate a controlled purity level slightly above the baseline 1050 grade.
Because of its extremely high purity, 1060 aluminum sheet offers outstanding electrical conductivity, excellent corrosion resistance, and superior workability. It is softer and more ductile than alloy grades such as 5052 or 6061, making it easy to form, bend, roll, and weld without cracking. These properties make it the first choice for applications where forming performance and conductivity matter more than strength.
Common alternate search terms include 1060 aluminium sheet, 1060 aluminum plate, AA1060 sheet, and cold rolling aluminum sheet price 1060. All refer to the same product family described on this page.
✅ Quick summary: 1060 aluminum sheet = 99.6% pure Al · Excellent conductivity · Easy to form & weld · Ideal for electrical, cookware, chemical, and building applications · Available in O, H12, H14, H16, H18, H22, H24 tempers.
Chemical Composition & Mechanical Properties
Chemical Composition (AA 1060 / GB/T 3190)
| Element | Al (min) | Si | Fe | Cu | Mn | Mg | Zn | Ti | Others (each) |
|---|---|---|---|---|---|---|---|---|---|
| 1060 | 99.60% | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.03 | ≤0.03 |
Mechanical Properties by Temper
| Temper | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HB) |
|---|---|---|---|---|
| O (Annealed) | 60–95 | ≤30 | ≥23 | ~19 |
| H12 | 75–110 | ≥55 | ≥8 | ~23 |
| H14 | 85–120 | ≥65 | ≥6 | ~26 |
| H16 | 100–135 | ≥75 | ≥5 | ~30 |
| H18 | ≥120 | ≥100 | ≥4 | ~35 |
| H22 | 75–110 | ≥45 | ≥10 | ~23 |
| H24 | 85–120 | ≥60 | ≥8 | ~26 |
Physical Properties
| Property | Value |
|---|---|
| Density | 2.71 g/cm³ |
| Melting Point | 646–657 °C |
| Electrical Conductivity | ≥61% IACS |
| Thermal Conductivity | ~234 W/(m·K) |
| Coefficient of Thermal Expansion | 23.6 × 10⁻⁶ /°C (20–100°C) |
| Elastic Modulus | 68 GPa |
| Poisson’s Ratio | 0.33 |
Temper & Thickness Specifications – 1060 Aluminum Sheet
We supply 1060 aluminum sheet and plate in a full range of tempers and dimensions. Custom sizes are available for large orders.
| Parameter | Standard Range | Common Specifications |
|---|---|---|
| Thickness | 0.1 mm – 500 mm | 0.5 / 1.0 / 1.5 / 2.0 / 3.0 / 4.0 / 5.0 / 6.0 mm |
| Width | 20 mm – 2650 mm | 600 / 1000 / 1200 / 1500 / 2000 mm |
| Length | 500 mm – 16000 mm (or coil) | 1000 / 2000 / 2440 / 3000 / 6000 mm |
| Temper | O, H12, H14, H16, H18, H22, H24, H26 | H24 and H18 most ordered |
| Surface Finish | Mill finish, bright, anodized, coated | Mill finish (standard) |
| Standard | ASTM B209, EN 573-3, GB/T 3880 | — |
| Form | Sheet / Plate / Coil / Strip / Circle | Sheet and coil most common |
Aluminum Sheet Thickness Tolerance (1060, mm)
| Nominal Thickness (mm) | Width ≤1500 mm | Width 1500–2000 mm | Width >2000 mm |
|---|---|---|---|
| 0.20–0.50 | ±0.015 | ±0.020 | — |
| 0.50–1.00 | ±0.025 | ±0.030 | ±0.040 |
| 1.00–2.00 | ±0.040 | ±0.050 | ±0.060 |
| 2.00–4.00 | ±0.060 | ±0.080 | ±0.100 |
| 4.00–6.00 | ±0.080 | ±0.100 | ±0.120 |
| 6.00–10.0 | ±0.120 | ±0.150 | ±0.180 |
Key Features & Advantages of 1060 Aluminum Sheet
⚡
High Electrical Conductivity
≥61% IACS — close to pure copper conductivity at a fraction of the weight. Ideal for bus bars and transformer windings.
🛡️
Excellent Corrosion Resistance
High purity means minimal alloying elements that can cause galvanic corrosion. Performs well in chemical and marine environments.
🔧
Superior Formability
Extremely ductile in O temper. Easy to deep draw, roll, stamp, spin, and bend without cracking or tearing.
🔗
Excellent Weldability
All common welding methods apply — TIG, MIG, resistance welding. No heat-treatment cracking concerns.
🌡️
Good Thermal Conductivity
234 W/(m·K) makes it effective for heat exchangers, cookware, and thermal management solutions.
⚖️
Lightweight
Density 2.71 g/cm³ — approximately one-third the weight of steel, reducing structural and transport costs.
✨
Anodizable Surface
Accepts anodizing well due to high purity. Produces a bright, uniform oxide layer for decorative and protective finishes.
♻️
Fully Recyclable
100% recyclable with no degradation of properties. Meets international environmental and sustainability standards.

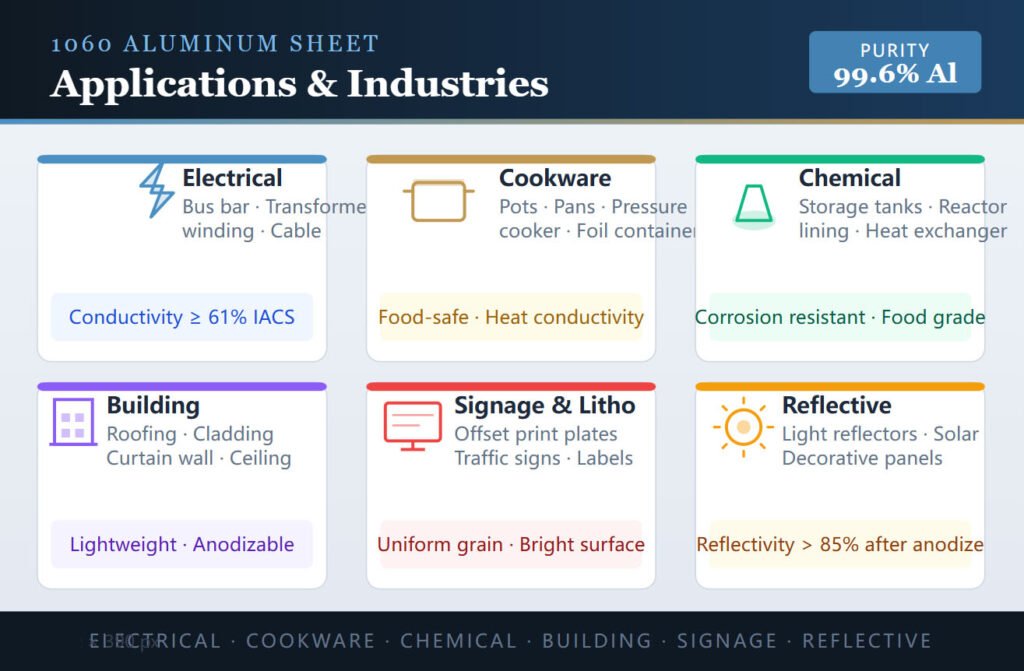

Applications of 1060 Aluminum Sheet
1060 aluminum sheet is used across a wide range of industries. Its combination of high conductivity, formability, and corrosion resistance makes it irreplaceable in the following sectors:
Electrical & Electronics
The electrical conductivity of 1060 aluminum sheet is the highest among commercial aluminum alloys. It is widely used for transformer windings, bus bars, electrical cabinets, and cable sheaths. In power distribution systems, 1060 aluminum strips replace copper in many applications to lower cost and weight.
Cookware & Food Packaging
Because 1060 is a food-grade pure aluminum alloy and has no toxic alloying elements, it is safe for direct contact with food. It is deep-drawn into cooking pots, pans, pressure cooker liners, aluminum foil containers, and other kitchen equipment. The excellent heat conductivity ensures even cooking.
Chemical & Industrial Equipment
1060 aluminum sheet offers outstanding resistance to most organic and inorganic acids. It is used in chemical storage tanks, reactor linings, heat exchangers, and pipework in pharmaceutical and food processing plants. The aluminum sheet heat exchange market heavily relies on 1060 alloy.
Building & Construction
Thin gauge 1060 aluminum sheets are popular for roofing, cladding, curtain wall panels, ceiling tiles, and insulation jacketing. The mill-finish surface can be anodized or painted to meet architectural requirements. Its light weight simplifies installation.
Signage & Printing (Litho Plate)
1060 aluminum sheet is a primary substrate for offset printing plates (litho sheets) and signage aluminum plates. The uniform surface and consistent grain make it ideal for fine printing reproduction. The aluminium litho sheet and signage aluminum plate markets are major end-use segments.
Reflective & Decorative Applications
After mirror finishing or bright anodizing, 1060 aluminum sheet achieves reflectivity above 85%. It is used for light reflectors, solar concentrators, decorative panels, and nameplate blanks.
Electrical Bus BarTransformer WindingCookwareHeat ExchangerChemical TankRoofing & CladdingLitho PlateSignageReflectorFoil ContainerRefrigerator PanelTraffic Signs
1060 Aluminum Sheet Price per kg / per Ton
The 1060 aluminum sheet price depends on several factors: London Metal Exchange (LME) aluminum ingot price, processing cost, temper, thickness, surface treatment, and order quantity. As a direct manufacturer, we offer competitive factory pricing without middleman markups.
| Pricing Factor | Details |
|---|---|
| Base metal (LME) | Fluctuates daily; we quote based on current LME + processing premium |
| Processing premium | Higher for thinner gauges, tighter tolerances, and special tempers |
| Surface treatment | Mill finish (lowest) → bright → anodized → coated (highest) |
| MOQ for best price | Typically 2–5 metric tons per specification |
| Typical price range | Contact us for current FOB/CIF price per kg or per ton |
| Payment terms | T/T, L/C at sight, DP — negotiable for long-term partners |
| Lead time | 7–15 days for standard stock sizes; 20–30 days for custom orders |
💡 Tip: The aluminum sheet price per square meter and aluminum sheet price per ton both depend on temper and thickness. Request a quotation with your exact specification for the most accurate price. We provide mill test certificates (MTC) with every shipment.
1060 vs. 1050 vs. 1100 Aluminum Sheet – Comparison
Buyers often compare 1060 with nearby 1xxx series alloys. The table below clarifies the key differences to help you choose the right grade.
| Property | 1050 Aluminum Sheet | 1060 Aluminum Sheet | 1100 Aluminum Sheet |
|---|---|---|---|
| Min. Al Purity | 99.50% | 99.60% | 99.00% |
| Electrical Conductivity | ~61% IACS | ≥61% IACS | ~57% IACS |
| Tensile Strength (O) | 60–95 MPa | 60–95 MPa | 75–115 MPa |
| Corrosion Resistance | Excellent | Excellent | Very Good |
| Formability | Excellent | Excellent | Very Good |
| Weldability | Excellent | Excellent | Excellent |
| Typical Applications | Foil, capacitor, litho | Electrical, cookware, chemical | Sheet metal work, fin stock |
| Common Tempers | O, H14, H18, H24 | O, H12–H18, H22, H24 | O, H12, H14, H16 |
| Standard | EN AW-1050A / AA 1050 | AA 1060 / GB 1060 | AA 1100 / ASTM B209 |
In summary: 1060 aluminum sheet sits between 1050 and 1100 in terms of purity and is the preferred choice in China and Asia for electrical and cookware applications. In North American markets, 1100 is more common; in European markets, 1050A dominates. All three are functionally interchangeable for most non-critical forming applications.
Why Choose Us as Your 1060 Aluminum Sheet Manufacturer
We are a leading 1060 aluminum sheet manufacturer with over 15 years of production experience. Our facilities operate continuous casting and rolling lines that give us full control over chemistry, temper, and dimensional accuracy from ingot to finished sheet.
🏭
Vertically Integrated
From ingot casting to slitting and annealing — all in-house. No sub-contracting means consistent quality and shorter lead times.
📋
Certified Quality
ISO 9001:2015 certified. Full mill test certificates (MTC) provided. Third-party inspection (SGS, BV, TUV) available on request.
📐
Custom Cutting
Precision slitting and cutting to your exact width, length, and tolerance. No minimum waste — order what you need.
📦
Export Packaging
Wooden pallets, moisture-proof wrapping, and corner protection. Packaging designed to survive ocean freight without damage.
Export, Service & Countries We Supply
We export 1060 aluminum sheet and plate to over 60 countries. Our major export markets include Southeast Asia, the Middle East, Africa, South America, and Europe. All shipments are supported by complete documentation: commercial invoice, packing list, bill of lading, certificate of origin, and mill test certificate.
| Region | Key Countries | Common Applications |
|---|---|---|
| Southeast Asia | Vietnam, Thailand, Indonesia, Malaysia, Philippines | Cookware, electrical, building |
| Middle East | UAE, Saudi Arabia, Turkey, Egypt | Construction, signage, packaging |
| South Asia | Bangladesh, Sri Lanka, Pakistan | Roofing, foil, electrical |
| Africa | Nigeria, Kenya, South Africa, Ghana | Roofing, chemical, food packaging |
| South America | Brazil, Colombia, Peru, Chile | Industrial, building cladding |
| Europe | Poland, Spain, Netherlands, Romania | Litho plate, automotive, decoration |
We offer flexible shipping terms: FOB, CFR, CIF, EXW, DDP. Our freight team handles sea, air, and land transport coordination. Sample orders (5–50 kg) are available for quality verification before bulk purchase.
Get a Quote for 1060 Aluminum Sheet
Tell us your thickness, temper, dimensions, and quantity — we’ll send you a competitive price within 24 hours.
