Looking for 1060 aluminum strip coil suppliers? This guide covers everything you need — from specs and pricing to applications and sourcing tips. Whether you need 1060 aluminum coil, 1060 aluminum strip, or 1060 aluminum sheet, read on.
What Is 1060 Aluminum Strip Coil?
1060 aluminum strip coil is a continuously rolled aluminum product. It belongs to the 1000 series pure aluminum family. The alloy contains 99.6% minimum aluminum content.
Key facts:
- Alloy: 1060 (Al 99.6% min)
- Form: Strip coil (narrow width roll)
- Tempers: O, H12, H14, H16, H18, H22, H24
- Surface: Mill finish, bright, one-side bright
- Standard: GB/T 3880, ASTM B209, EN 573
1060 aluminum is one of the most widely used pure aluminum alloys. It offers excellent electrical conductivity, good formability, and strong corrosion resistance.
1060 Aluminum Strip Coil vs 1060 Aluminum Coil
Many buyers use these terms interchangeably. Here is the difference:
| Feature | 1060 Aluminum Strip Coil | 1060 Aluminum Coil |
|---|---|---|
| Width | Narrow (10–600 mm) | Wide (600–2,650 mm) |
| Thickness | 0.1–3.0 mm | 0.2–6.0 mm |
| Use | Transformer, cable wrap | General sheet, roofing |
| Slitting | Pre-slit to narrow width | Full width coil |
| Weight/coil | 50–3,000 kg | 2,000–8,000 kg |
| MOQ | 1–3 tons | 3–5 tons |
Both products come from the same base material. Strip coils are slit from wider coils to precise widths.
1060 Aluminum Strip Coil Specifications
Dimensional Range
| Parameter | Range |
|---|---|
| Thickness | 0.1 mm – 3.0 mm |
| Width | 10 mm – 600 mm |
| Inner diameter | 150 mm / 300 mm / 405 mm / 505 mm |
| Outer diameter | Up to 1,500 mm |
| Coil weight | 50 kg – 3,000 kg |
| Width tolerance | ±0.1 mm – ±0.3 mm |
| Thickness tolerance | ±0.01 mm – ±0.05 mm |
Chemical Composition
| Element | Content |
|---|---|
| Aluminum (Al) | ≥ 99.60% |
| Silicon (Si) | ≤ 0.25% |
| Iron (Fe) | ≤ 0.35% |
| Copper (Cu) | ≤ 0.05% |
| Manganese (Mn) | ≤ 0.03% |
| Magnesium (Mg) | ≤ 0.03% |
| Zinc (Zn) | ≤ 0.05% |
| Titanium (Ti) | ≤ 0.03% |
| Others | ≤ 0.03% each |

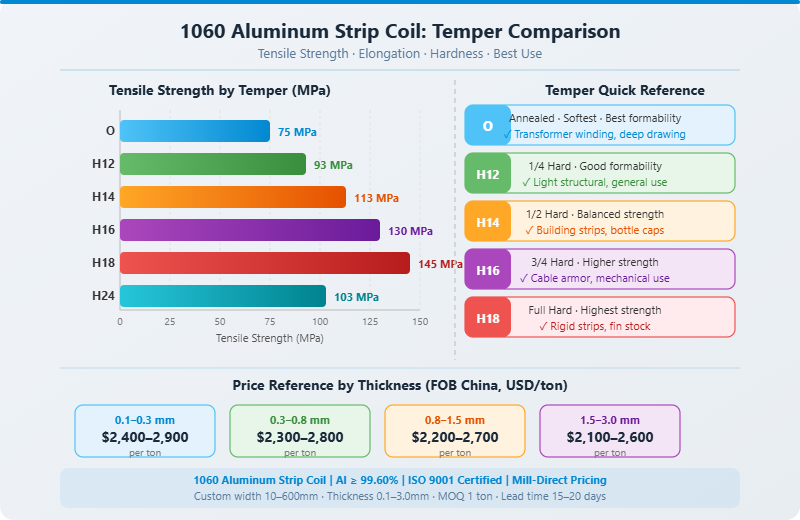

Mechanical Properties by Temper
| Temper | Condition | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|---|
| O | Annealed | 55–95 MPa | 15–35 MPa | ≥ 25% |
| H12 | 1/4 hard | 75–110 MPa | ≥ 55 MPa | ≥ 12% |
| H14 | 1/2 hard | 95–130 MPa | ≥ 75 MPa | ≥ 8% |
| H16 | 3/4 hard | 110–150 MPa | ≥ 90 MPa | ≥ 6% |
| H18 | Full hard | ≥ 125 MPa | ≥ 105 MPa | ≥ 4% |
| H24 | 3/4 hard stabilized | 85–120 MPa | ≥ 65 MPa | ≥ 8% |
1060 Aluminum Strip Coil Price
Note: Prices are approximate references. Final price depends on LME aluminum price, order quantity, and surface treatment.
| Unit | Approximate Price |
|---|---|
| Per kg | $2.10 – $2.90 |
| Per ton | $2,100 – $2,900 |
| Per pound | $0.95 – $1.32 |
Main Price Factors
1. LME Aluminum Base Price
All aluminum products price = LME base + processing premium. LME price changes daily.
2. Order Quantity
| Order Volume | Price Benefit |
|---|---|
| 1–3 tons | Standard price |
| 3–10 tons | 3–5% lower |
| 10–50 tons | 5–10% lower |
| 50+ tons | 10–18% lower |
3. Temper
Hard tempers (H16, H18) cost slightly more than soft tempers (O, H12) due to extra rolling passes.
4. Width Precision
Very narrow strips (under 20 mm) require more slitting passes. Price is higher per ton.
5. Surface Finish
| Surface | Price Impact |
|---|---|
| Mill finish | Base price |
| One-side bright | +5–10% |
| Both-side bright | +10–20% |
| Anodized | +30–60% |

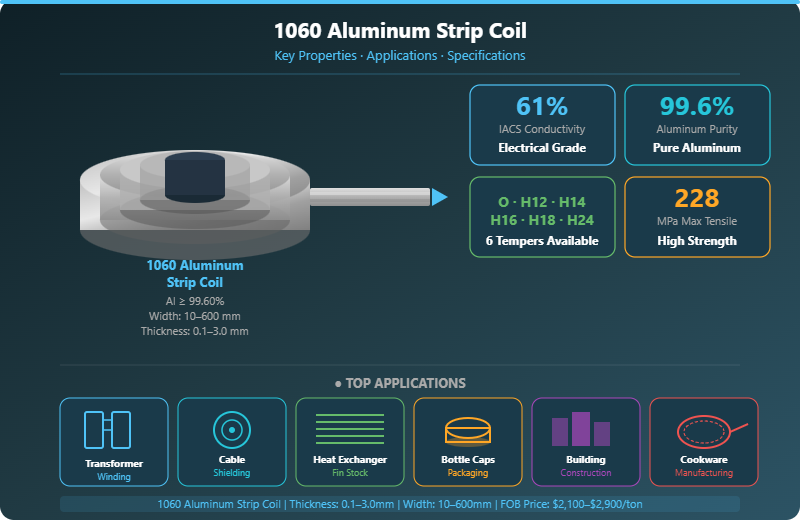

What Is 1060 Aluminum Strip Coil Used For?
1060 aluminum strip coil serves many industries. Here are the main applications:
Transformer and Electrical Industry
This is the biggest market for 1060 aluminum strip. Transformers use aluminum strip as winding material.
Why 1060?
- Electrical conductivity: 61% IACS (excellent)
- Easy to wind around cores
- Lightweight vs copper
- Cost-effective alternative to copper windings
Common specifications for transformer use:
- Thickness: 0.2–3.0 mm
- Width: 20–600 mm
- Temper: O (soft, for easy winding)
Cable and Wire Industry
1060 aluminum strip wraps around cables as shielding and armor. It protects cables from mechanical damage and electromagnetic interference.
Fin Stock for Heat Exchangers
Thin 1060 aluminum strip makes cooling fins for:
- Air conditioners
- Radiators
- Refrigerators
- Heat exchangers
Common specs: thickness 0.08–0.2 mm, temper H22/H24
Bottle Caps and Closures
Thin 1060 strip forms bottle caps and container closures. It is food-safe and corrosion resistant.
Building and Construction
1060 aluminum strip is used for:
- Ceiling strips and tiles
- Decorative strips
- Expansion joints
- Weatherproofing strips
Cookware Manufacturing
Wider 1060 strips feed into circle blanking lines. They become cookware bottoms and pots.
Application Summary
| Application | Thickness | Width | Temper |
|---|---|---|---|
| Transformer winding | 0.2–3.0 mm | 20–600 mm | O |
| Cable shielding | 0.1–0.5 mm | 10–150 mm | H18 |
| Heat exchanger fins | 0.08–0.2 mm | 50–300 mm | H22/H24 |
| Bottle caps | 0.1–0.3 mm | 100–400 mm | H14/H16 |
| Building strips | 0.5–2.0 mm | 20–200 mm | H14/H18 |
| Cookware circles | 1.0–4.0 mm | 200–600 mm | O |
1060 Aluminum Coil: Full Width Product
1060 aluminum coil is the wider version of the strip coil. It serves different applications.
1060 Aluminum Coil Specifications
| Parameter | Range |
|---|---|
| Thickness | 0.2 mm – 6.0 mm |
| Width | 600 mm – 2,650 mm |
| Inner diameter | 505 mm / 610 mm |
| Outer diameter | Up to 2,000 mm |
| Coil weight | 2,000 – 8,000 kg |
| Temper | O, H12, H14, H16, H18, H24 |
1060 Aluminum Coil Applications
- Roofing and cladding
- Gutter systems
- General sheet metal fabrication
- Circle blanking for cookware
- Composite panel core
1060 Aluminum Sheet
1060 aluminum sheet is cut from 1060 aluminum coil to flat sheet format.
1060 Aluminum Sheet Specifications
| Parameter | Range |
|---|---|
| Thickness | 0.3 mm – 50 mm |
| Width | Up to 2,650 mm |
| Length | Up to 12,000 mm |
| Standard size | 4×8 ft (1220×2440 mm) |
| Temper | O, H14, H24 |
1060 Sheet vs 1060 Strip Coil
| Feature | 1060 Sheet | 1060 Strip Coil |
|---|---|---|
| Form | Flat cut piece | Continuous roll |
| Storage | Stacked flat | Wound on core |
| Cutting | Pre-cut to size | Customer cuts to need |
| Waste | More offcuts | Less waste |
| Price | Slightly higher | Lower per ton |
| Best for | Small quantities | High-volume production |
1060 vs Other Aluminum Alloys
Buyers often compare 1060 with other alloys. Here is a clear comparison:
1060 vs 1050 vs 1100
| Property | 1050 | 1060 | 1100 |
|---|---|---|---|
| Al purity | 99.50% | 99.60% | 99.00% |
| Tensile strength | 55–95 MPa | 55–95 MPa | 75–115 MPa |
| Conductivity | 61% IACS | 61% IACS | 59% IACS |
| Formability | Excellent | Excellent | Excellent |
| Price | Similar | Similar | Similar |
| Common use | Cookware, signs | Transformer, cable | General fabrication |
1060 vs 3003
| Property | 1060 | 3003 |
|---|---|---|
| Al purity | 99.60% | ~98% |
| Strength | Lower | 20% higher |
| Conductivity | Higher | Lower |
| Corrosion resistance | Good | Better |
| Formability | Excellent | Very good |
| Price | Lower | Higher |
| Best use | Electrical, thin gauge | Cookware, pressure vessels |
1060 vs 6061
| Property | 1060 | 6061 |
|---|---|---|
| Strength | Low | High |
| Conductivity | Excellent | Good |
| Machinability | Fair | Excellent |
| Weldability | Excellent | Good |
| Price | Lower | Higher |
| Form available | Sheet, strip, coil | Sheet, plate, bar, tube |
1060 Aluminum Suppliers: How to Choose
Finding the right 1060 aluminum suppliers is critical for quality and cost control.
What to Look for in a Supplier
1. Production Capability
- Does the factory have their own rolling mill?
- Can they produce your exact thickness and width?
- What is their monthly production capacity?
2. Quality Certifications
Look for:
- ISO 9001:2015
- Mill Test Report (MTR/COA)
- SGS or BV third-party inspection
- RoHS compliance (for electronics applications)
3. Export Experience
- How many years have they exported?
- Which countries do they supply?
- Can they provide shipping documents (B/L, packing list, CO)?
4. Minimum Order Quantity
| Supplier Type | Typical MOQ |
|---|---|
| Mill / Manufacturer | 3–5 tons |
| Distributor | 500 kg – 2 tons |
| Trading company | 1–3 tons |
5. Sample Policy
Always request samples before bulk orders. Good suppliers provide free or low-cost samples.
Questions to Ask Your Supplier
- What is the thickness tolerance?
- What is the width tolerance?
- Is the edge burr-free?
- What is the coil inner diameter?
- What surface finish do you offer?
- What is the lead time?
- What is the packaging method?
1060 Aluminum Strip Coil: Production Process
Understanding production helps you evaluate quality.
Manufacturing Steps
Aluminum ingot (99.6% purity)
↓
Melting and casting (continuous cast or DC cast)
↓
Hot rolling (thick slab to ~6 mm)
↓
Cold rolling (to final thickness)
↓
Annealing (for O temper) or
Controlled rolling (for H tempers)
↓
Slitting (wide coil → narrow strip coil)
↓
Edge trimming and deburring
↓
Surface inspection
↓
Rewinding on core
↓
Packaging and shippingQuality Control Points
| Stage | Check |
|---|---|
| Casting | Chemical composition analysis |
| Hot rolling | Thickness, surface quality |
| Cold rolling | Thickness tolerance, flatness |
| Annealing | Mechanical properties |
| Slitting | Width tolerance, edge quality |
| Final | Surface, dimensions, coil weight |
Packaging and Shipping
Standard Packaging for 1060 Aluminum Strip Coil
| Item | Detail |
|---|---|
| Inner wrapping | Moisture-proof film |
| Outer wrapping | Kraft paper + stretch film |
| Support | Wooden pallet or steel frame |
| Edge protection | Cardboard corner protectors |
| Label | Alloy, temper, size, weight, coil ID |
| Max weight/pallet | 3,000 kg |
Shipping Options
| Method | Lead Time | Best For |
|---|---|---|
| Sea FCL | 15–40 days | 5+ tons |
| Sea LCL | 20–50 days | 1–5 tons |
| Air freight | 3–7 days | Urgent small orders |
| Rail (to Europe) | 18–25 days | Europe buyers |
Why Choose Us as Your 1060 Aluminum Strip Coil Supplier?
As a direct manufacturer, we offer:
✅ Factory-direct pricing — no middleman cost
✅ Precise slitting — width tolerance ±0.1 mm
✅ Full temper range — O, H12, H14, H16, H18, H22, H24
✅ Custom width and thickness — from 10 mm to 600 mm wide
✅ ISO 9001 certified — consistent quality
✅ Complete documentation — MTR, SGS, CO, packing list
✅ Low MOQ — from 1 ton for sample orders
✅ Fast delivery — 15–20 days standard production
✅ Global export experience — 50+ countries supplied
Frequently Asked Questions
What is 1060 aluminum strip coil used for?
Transformer winding is the biggest application. Other uses include cable shielding, heat exchanger fins, bottle caps, building strips, and cookware production.
What is the difference between 1060 aluminum strip and 1060 aluminum coil?
Strip coil is narrow width (10–600 mm). Coil is full width (600–2,650 mm). Strip coil is slit from wider coils to precise narrow widths.
Is 1060 aluminum good for transformers?
Yes. 1060 aluminum has 61% IACS electrical conductivity. It is the standard material for transformer windings. It is lighter and cheaper than copper.
What temper should I choose for transformer strip?
Use O temper (fully annealed). It is soft and easy to wind around transformer cores without cracking.
What is the minimum order quantity?
Most manufacturers require 3–5 tons minimum. Distributors may accept smaller orders from 500 kg. We accept orders from 1 ton for sampling.
Summary Table
| Key Point | Detail |
|---|---|
| Core product | 1060 aluminum strip coil |
| Alloy purity | 99.60% aluminum minimum |
| Thickness range | 0.1 mm – 3.0 mm (strip) |
| Width range | 10 mm – 600 mm |
| Popular tempers | O, H14, H18, H22, H24 |
| Price range | $2,100 – $2,900 per ton (FOB) |
| Top application | Transformer winding, cable, fins |
| Lead time | 15–20 days |
| MOQ | 1 ton sample / 3 tons standard |
| Certifications | ISO 9001, MTR, SGS available |
