When contractors, fabricators, and distributors source flooring, stair treads, ramps, and decorative panels, five bars embossed aluminum sheet is one of the most specified products in the market. The five-bar pattern provides excellent slip resistance, a clean industrial appearance, and a durable surface that performs well in both heavy-duty and decorative applications.
This guide covers everything buyers need to know: what five bars embossed aluminum sheet is, alloy and temper options, standard sizes, surface finish choices, applications, five bars embossed aluminum sheet price factors, and how to order.
1. What Is Five Bars Embossed Aluminum Sheet?
Five bars embossed aluminum sheet is an aluminum sheet with a raised pattern of five parallel bars pressed into the surface during the rolling process. The pattern is also known as:
- Five bar aluminum tread plate
- Aluminum 5 bar
- 5 bar aluminum plate
- Five rib aluminum sheet
- Aluminum checker plate (five bar pattern)
- Embossed decorative aluminum sheet
- Aluminum diamond plate (five bar variant)
The five-bar pattern is the most widely used embossed pattern in the aluminum industry. The raised bars run in alternating directions at approximately 60° angles, creating a uniform pattern across the sheet surface. This design provides:
- Slip resistance — raised bars prevent foot and vehicle slipping
- Strength — embossing increases surface rigidity
- Appearance — clean, uniform industrial look
- Durability — pattern protects the surface from scratches
2. Five Bar vs Other Embossed Patterns
There are several embossed aluminum sheet patterns. Five bar is the most common, but buyers should know the differences.
| Pattern | Description | Typical Use |
|---|---|---|
| Five bar (5 bar) | Five parallel raised bars in alternating directions | Flooring, stair treads, ramps, truck bodies |
| Diamond / Lozenge | Diamond-shaped raised pattern | Decorative panels, toolboxes |
| Stucco | Fine orange-peel texture | Refrigerators, decorative cladding |
| Leathergrain | Fine leather-like texture | Interior decoration, signage |
| Pointer / Compass | Cross-hatch raised pattern | Heavy industrial flooring |
Five bar aluminum tread plate is preferred for structural and safety applications because the directional bar pattern provides better grip underfoot than diamond or stucco patterns.

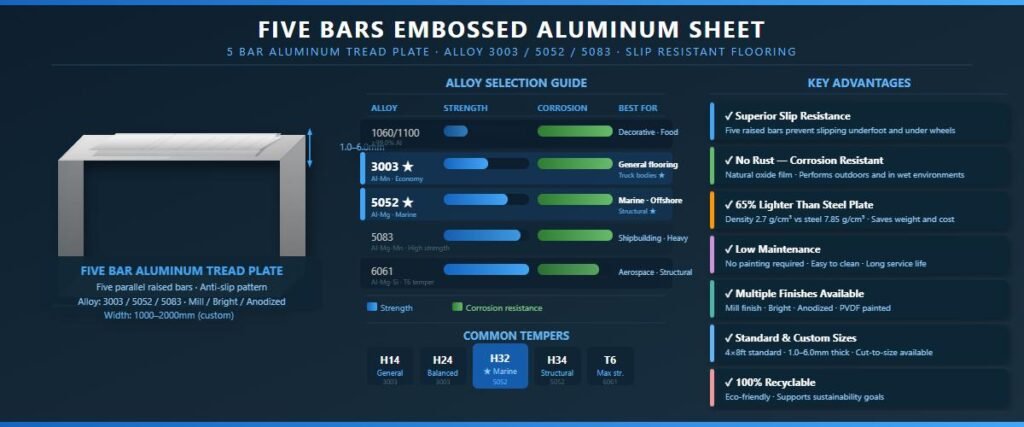

3. Alloy Selection for Five Bars Embossed Aluminum Sheet
Alloy selection affects strength, corrosion resistance, formability, and price. The most common alloys for 5 bar aluminum plate are from the 1xxx, 3xxx, and 5xxx series.
1060 / 1100 Aluminum Five Bar Sheet
- Aluminum content: ≥99.0%
- Strength: low
- Formability: excellent
- Corrosion resistance: excellent
- Best for: decorative use, light-duty flooring, food processing
3003 Aluminum Five Bar Sheet
- Alloy: Al-Mn
- Strength: medium (about 20% stronger than 1100)
- Formability: good
- Corrosion resistance: excellent
- Best for: general flooring, truck bodies, refrigerated vehicles, general industrial
5052 Aluminum Five Bar Sheet
- Alloy: Al-Mg
- Strength: medium-high
- Formability: good
- Corrosion resistance: excellent (especially in marine environments)
- Best for: marine flooring, offshore platforms, structural applications
5083 Aluminum Five Bar Sheet
- Alloy: Al-Mg-Mn
- Strength: high
- Formability: good
- Corrosion resistance: excellent (highest among common 5xxx alloys)
- Best for: shipbuilding, offshore, structural heavy-duty flooring
6061 Aluminum Five Bar Sheet
- Alloy: Al-Mg-Si (heat treatable)
- Strength: high (T6 temper)
- Formability: moderate
- Corrosion resistance: good
- Best for: aerospace, structural, high-load flooring
Alloy Comparison Summary
| Alloy | Strength | Corrosion Resistance | Formability | Price Level | Best Application |
|---|---|---|---|---|---|
| 1060 / 1100 | Low | Excellent | Excellent | Lowest | Decorative, food processing |
| 3003 | Medium | Excellent | Good | Low-Medium | General flooring, truck bodies |
| 5052 | Med-High | Excellent | Good | Medium | Marine, offshore, structural |
| 5083 | High | Excellent | Good | Medium-High | Shipbuilding, heavy structural |
| 6061 | High | Good | Moderate | Medium-High | Aerospace, high-load |
For most general commercial and industrial flooring, 3003 is the most cost-effective choice. For marine or corrosive environments, 5052 or 5083 is recommended.
4. Temper Options for Five Bars Embossed Aluminum Sheet
The temper affects mechanical properties, formability, and suitability for specific applications.
| Temper | Condition | Typical Use |
|---|---|---|
| O | Fully annealed — softest | Maximum bending and forming |
| H14 | 1/2 hard | General flooring, moderate forming |
| H22 | 1/4 hard + partial anneal | Good balance for tread plate |
| H24 | 1/2 hard + partial anneal | Slightly stiffer, good formability |
| H32 | 1/4 hard + stabilize | Marine and structural applications |
| H34 | 1/2 hard + stabilize | Structural, higher strength |
| T6 | Solution heat treated + aged | Maximum strength (6061 alloy) |
For 3003 five bar aluminum plate, H14 and H24 are the most common tempers for commercial flooring. For 5052 five bar, H32 and H34 are standard for structural and marine use.
5. Standard Sizes of Five Bars Embossed Aluminum Sheet
Thickness
The thickness of five bars embossed aluminum sheet is measured to the base metal. The embossed pattern adds additional height above the base.
| Thickness (Base) | Pattern Height | Total Thickness | Typical Application |
|---|---|---|---|
| 1.0 mm | ~0.5 mm | ~1.5 mm | Lightweight decorative panels |
| 1.5 mm | ~0.5 mm | ~2.0 mm | Light-duty flooring, vehicle interiors |
| 2.0 mm | ~0.6 mm | ~2.6 mm | Standard commercial flooring |
| 2.5 mm | ~0.6 mm | ~3.1 mm | General industrial flooring |
| 3.0 mm | ~0.7 mm | ~3.7 mm | Heavy-duty flooring, ramps |
| 4.0 mm | ~0.8 mm | ~4.8 mm | Structural flooring, truck bodies |
| 5.0 mm | ~0.9 mm | ~5.9 mm | Heavy structural applications |
| 6.0 mm | ~1.0 mm | ~7.0 mm | Maximum load flooring |
Standard Sheet Sizes
| Width × Length | Common Name | Typical Market |
|---|---|---|
| 1000 mm × 2000 mm | 1 × 2 meter sheet | Asia, Europe |
| 1219 mm × 2438 mm | 4 × 8 feet | North America, global |
| 1250 mm × 2500 mm | 1.25 × 2.5 meter | Europe, Middle East |
| 1500 mm × 3000 mm | 1.5 × 3 meter | Construction, shipbuilding |
| 1500 mm × 6000 mm | 1.5 × 6 meter | Industrial, truck body |
| 2000 mm × 4000 mm | 2 × 4 meter | Large format, custom |
Custom sizes are available. Many fabricators order cut-to-size sheets to reduce waste.
Aluminum Sheet 4×8
The aluminum sheet 4×8 format (1219 mm × 2438 mm) is the standard sheet size in North America. It is the most widely stocked size for five bar aluminum tread plate in the US and Canadian markets. Standard thicknesses available in 4×8 format include 1/8″, 3/16″, 1/4″, and 3/8″ (approximately 3.2 mm, 4.8 mm, 6.4 mm, and 9.5 mm).
6. Surface Finish Options
Embossed decorative aluminum sheet is available in several surface conditions.
| Surface Finish | Description | Application |
|---|---|---|
| Mill finish | Natural as-rolled surface, slight silvery sheen | Industrial flooring, structural |
| Bright finish | Polished surface before embossing | Decorative panels, interior design |
| Anodized | Electrochemical surface treatment | Architectural, marine, premium decorative |
| Painted / coated | PVDF or polyester paint applied | Decorative, color-matched applications |
| Lacquered | Clear protective lacquer | Preserves bright appearance |
For most five bar aluminum tread plate applications, mill finish is standard. For decorative and architectural use, bright or anodized finish is specified.
7. Applications of Five Bars Embossed Aluminum Sheet
Transportation and Vehicle Bodies
Five bar aluminum tread plate is widely used in the transportation industry:
- Truck bed liners and load floors
- Trailer flooring
- Refrigerated vehicle floors and walls
- Bus and coach floors
- Ambulance and emergency vehicle interiors
- Pickup truck accessories
The combination of lightweight, slip resistance, and corrosion resistance makes five bar aluminum ideal for vehicle flooring where hygiene, weight, and safety are important.
Building and Construction Flooring
- Stair treads and nosings
- Access ramps and walkways
- Mezzanine flooring
- Raised access floors
- Industrial plant flooring
- Loading dock plates
For stair treads and ramps, the five-bar pattern provides the anti-slip surface required by building codes and safety standards without the need for additional anti-slip coatings.
Marine and Offshore Applications
5052 and 5083 five bar aluminum sheets are specified for:
- Boat deck flooring
- Gangways and access platforms
- Offshore platform grating areas
- Marine vehicle ramps
- Dock and pier flooring
The excellent corrosion resistance of 5052 and 5083 alloys in saltwater environments makes them the preferred choice for marine flooring.
Decorative and Architectural Applications
Embossed decorative aluminum sheet is also used for:
- Wall cladding panels
- Column covers
- Kick plates on doors
- Counter and display surfaces
- Toolboxes and equipment cases
- Electrical panel covers
Bright finish and anodized five bar sheets are popular for architectural applications where appearance is as important as function.
Cold Storage and Food Processing
- Cold room flooring
- Food processing plant floors
- Refrigeration unit panels
- Commercial kitchen flooring
Food-safe alloys (1060, 3003) are used in food processing environments. The pattern is easy to clean and resists the buildup of food debris.

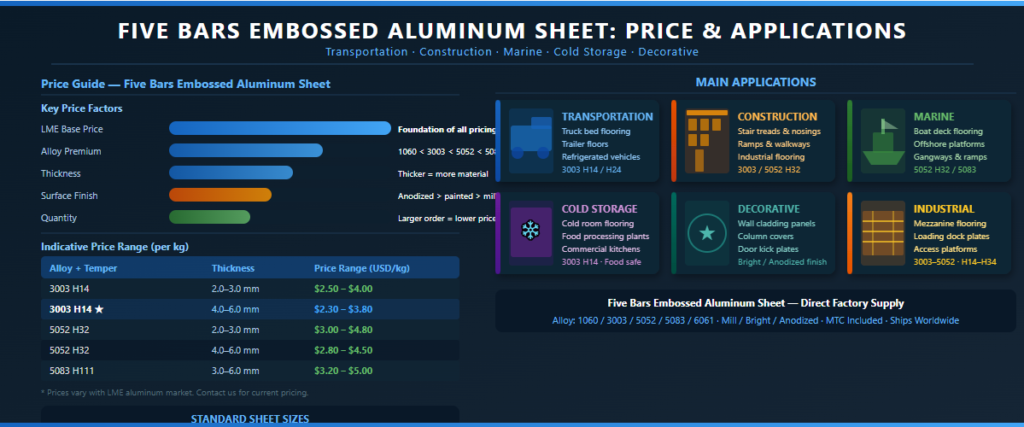

8. Five Bars Embossed Aluminum Sheet Price
Five bars embossed aluminum sheet price depends on several factors. Understanding these factors helps buyers budget accurately and negotiate effectively.
Key Price Factors
| Factor | Effect on Price |
|---|---|
| LME aluminum base price | Changes daily — foundation of all aluminum pricing |
| Alloy | 1060 < 3003 < 5052 < 5083 < 6061 |
| Temper | O and H14 most economical; T6 highest |
| Thickness | Thicker sheet = more material = higher total cost |
| Sheet size | Standard sizes are most economical; custom sizes add cutting cost |
| Surface finish | Mill finish lowest; anodized and PVDF painted highest |
| Quantity | Larger orders receive lower per-kg or per-sheet pricing |
| Origin | Domestic vs import pricing varies by market |
| Certification | Standard MTC included; third-party inspection adds cost |
Indicative Price Range
Prices vary with LME aluminum market conditions. The following is a general guide:
| Alloy | Thickness | Approximate Price Range |
|---|---|---|
| 3003 H14 | 2.0–3.0 mm | $2.50 – $4.00 per kg |
| 3003 H14 | 4.0–6.0 mm | $2.30 – $3.80 per kg |
| 5052 H32 | 2.0–3.0 mm | $3.00 – $4.80 per kg |
| 5052 H32 | 4.0–6.0 mm | $2.80 – $4.50 per kg |
| 5083 H111 | 3.0–6.0 mm | $3.20 – $5.00 per kg |
For accurate current pricing, contact suppliers with your complete specification including alloy, temper, thickness, size, quantity, and destination.
9. Key Features and Advantages
| Feature | Benefit |
|---|---|
| Five-bar raised pattern | Superior slip resistance — meets safety standards |
| Lightweight | Much lighter than steel checker plate |
| Corrosion resistance | No rust — performs outdoors and in wet environments |
| Long service life | Pattern retains shape and grip performance over time |
| Easy to clean | Smooth base with defined pattern — no debris trapping |
| Weldable | Can be welded and fabricated on site |
| Recyclable | 100% recyclable — supports sustainability goals |
| Wide size range | Available in standard and custom sizes |
| Multiple alloys | Selection for any application from decorative to structural |
10. Five Bars Embossed Aluminum Sheet vs Steel Checker Plate
Many buyers compare five bar aluminum with steel checker plate. Both are used for flooring and tread plate applications.
| Property | Five Bar Aluminum | Steel Checker Plate |
|---|---|---|
| Weight | ~2.7 g/cm³ — very light | ~7.85 g/cm³ — heavy |
| Corrosion resistance | Excellent — no rust | Poor without coating |
| Maintenance | Low — no painting required | High — regular painting needed |
| Strength | Good to high depending on alloy | Very high |
| Cost | Higher material cost | Lower material cost |
| Life cycle cost | Lower — minimal maintenance | Higher — painting and replacement |
| Food safe | Yes (1060, 3003) | No |
| Weight saving | Up to 65% lighter than steel | Baseline |
For applications where weight, corrosion resistance, and long-term maintenance cost matter, five bar aluminum tread plate is the preferred choice. For maximum structural strength at lowest initial material cost, steel checker plate is selected.
11. How to Order: RFQ Checklist
Send the following information for an accurate quotation:
- Alloy: 1060 / 3003 / 5052 / 5083 / 6061 (specify)
- Temper: O / H14 / H22 / H24 / H32 / H34 / T6
- Thickness: base thickness in mm or inch
- Sheet size: width × length in mm or feet × inches
- Surface finish: mill finish / bright / anodized / painted
- Pattern: five bar (confirm — other patterns available on request)
- Quantity: number of sheets, kg, or metric tons
- Application: flooring / marine / decorative / structural
- Certification: MTC required / third-party inspection
- Delivery term: FOB / CIF / DDP
- Destination port or delivery address
12. Why Source Five Bars Embossed Aluminum Sheet From Us
We supply five bars embossed aluminum sheet to contractors, fabricators, distributors, and OEM manufacturers worldwide.
Our advantages:
✅ Full alloy range — 1060, 1100, 3003, 5052, 5083, 6061 available
✅ Complete thickness range — 1.0 mm to 6.0 mm standard
✅ Standard and custom sheet sizes
✅ Mill finish, bright finish, anodized, and painted options
✅ Mill test certificate with every order
✅ Competitive factory pricing — direct from mill
✅ Cut-to-size service available
✅ Export experience — supply to 50+ countries
✅ Fast RFQ — reply within 24 hours
Frequently Asked Questions
Q: What is five bar aluminum tread plate?
A: Five bar aluminum tread plate is an aluminum sheet with a raised five-bar embossed pattern that provides slip resistance. It is used for flooring, stair treads, ramps, and vehicle bodies.
Q: What alloy is best for five bars embossed aluminum sheet?
A: For general flooring, 3003 is most cost-effective. For marine use, 5052 or 5083 is recommended. For structural and high-load applications, 5052 H34 or 6061 T6 is specified.
Q: What is the standard size of five bar aluminum sheet?
A: Common sizes include 4×8 feet (1219×2438 mm), 1250×2500 mm, and 1500×3000 mm. Custom sizes are available on request.
Q: How is five bars embossed aluminum sheet price calculated?
A: Price is based on LME aluminum price plus alloy premium, processing cost, surface finish, and quantity. Contact us with your specification for an accurate quotation.
Q: What is the difference between five bar and diamond pattern?
A: Five bar has five parallel raised bars per pattern unit and is better for slip resistance underfoot. Diamond pattern has a raised lozenge shape and is more commonly used for decorative applications.
Q: Can five bar aluminum sheet be anodized?
A: Yes. Five bar aluminum sheet can be anodized after embossing. Anodizing improves corrosion resistance and gives a premium appearance for architectural and decorative applications.
Conclusion
Five bars embossed aluminum sheet is a versatile product serving safety, structural, and decorative applications across transportation, construction, marine, and industrial markets. Alloy selection — from economy 3003 to marine-grade 5052 or structural 6061 — determines the right performance level for your application.
Five bars embossed aluminum sheet price depends on alloy, thickness, size, finish, and quantity. For accurate pricing, send us your complete specification.
Contact us today with your alloy, temper, thickness, size, quantity, and application. We respond within 24 hours with a competitive quote.
