Coated aluminum coil has become the standard of choice for many industries, from high-end architecture to precision electronics. The right material can really be seen as a bridge to either a poorly executed project or a great one. At Gusto Aluminum, we are not simply in the business of producing coils; we engineer durability, aesthetics, and efficiency.
If you work in building and development and need a durable facade that lasts against the elements, or you manufacture household goods and need to make sure you use the same materials all the time, it is critical to understand the different aspects of coated aluminum. This book will cover the many aspects of the technical and how they relate to the business side of working with a quality coater.
Coil Coated Aluminum is:

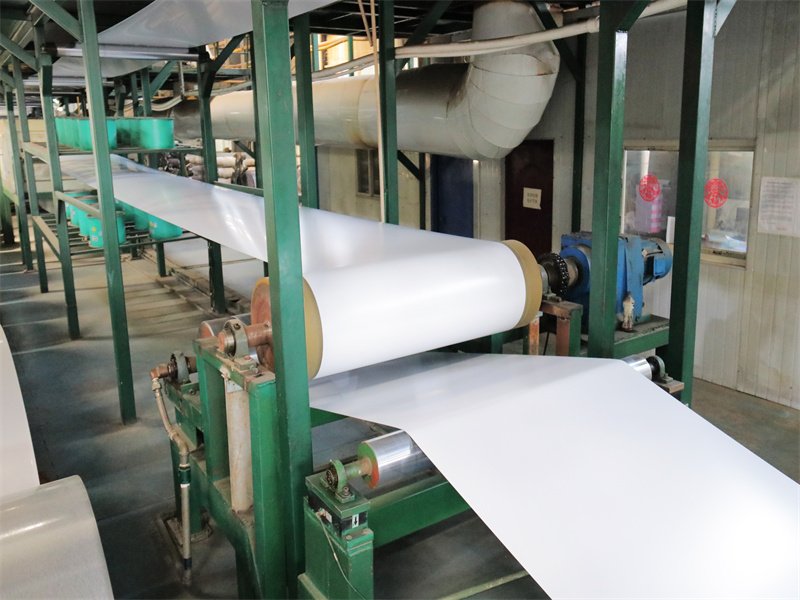

Coil coating represents a highly automated and continuous production process through which metal is coated prior to its use in a manufacturing process. Coil coated aluminum is typically produced as a continuous aluminum coil that has been cleaned and chemically pretreate and then coated with multiple layers of organic coatings (such as Polyethylene (PE) or Polyvinylidene Fluoride (PVDF)) as part of a synchronized manufacturing process.
When compared with traditional spray-painted processing methods (where the finished product is painted after it is manufactured), coil coating achieves the following level of performance uniformity:
- Every square meter of the coil is coated to a uniform thickness.
- Adhesion —the adhesive connection created by chemistry between the aluminium substrate and the coating is very much stronger than before.
- Environmental Efficiency – The process traps and burns VOCs (volatile organic compounds) and so provides an environmentally friendly option.
What is PVC Coated Aluminum?
PVC (Polyvinyl Chloride) coated aluminum is a specific variant where a thin layer of PVC film or a PVC-based plastisol coating is applied to the aluminum surface. This is often chosen for environments requiring extreme scratch resistance or specialized textures.
PVC vs. Standard Organic Coatings
| Feature | PVC Coated Aluminum | Standard PE/PVDF Coated |
| Film Thickness | Generally thicker (up to 200 microns) | Thinner (15–35 microns) |
| Flexibility | Extremely high (excellent for deep drawing) | High to Moderate |
| Chemical Resistance | Superior against acids and alkalis | High UV resistance |
| Common Use | Cold storage, interior decorative panels | Exterior facades, roofing |
An Introduction to Color Coated Aluminum Coil
Color coated aluminum coil is the aesthetic powerhouse of the aluminum industry. By applying high-performance resins mixed with vibrant pigments, we provide a palette that spans thousands of RAL colors, wood grains, stone textures, and metallic finishes.
The Coating Systems
- PE (Polyester): Best for interior decoration and signage. It offers great flexibility and a high-gloss finish.
- PVDF (Fluorocarbon): The king of outdoor durability. Containing 70% fluorocarbon resin, it resists fading, chalking, and corrosion for 20+ years.
- HDPE (High Durability Polyester): A middle-ground solution offering better UV resistance than standard PE at a lower cost than PVDF.
Applications of Coated Aluminum Coil
The versatility of coated aluminum makes it indispensable. Its lightweight nature combined with the protective barrier of the coating allows it to replace heavier or more corrosive metals.
- Architecture: Roofing systems, ACP (Aluminum Composite Panels), ceiling tiles, and curtain walls.
- Transportation: Body panels for trucks, caravans, and interior trim for high-speed rails.
- Appliances: Refrigerator side panels, microwave casings, and air conditioner components.
- Electronics: Computer chassis and lighting fixtures (mirrored coated aluminum).
Technical Parameters of Coated Aluminum Coil
To ensure the material meets your engineering requirements, we adhere to strict international standards (ASTM, EN, or JIS).
Mechanical and Physical Parameters
| Parameter | Specification Range |
| Alloy Grade | 1000, 3000, 5000, 8000 Series (e.g., 3003, 5052) |
| Temper | H14, H16, H18, H24, H26 |
| Thickness | 0.02mm – 3.0mm |
| Width | 40mm – 1600mm |
| Coating Thickness | 5μm – 35μm (Top), 5μm – 15μm (Back) |
| Gloss | 10% – 90% (Customizable) |
Chemical Performance Table
Chemical stability is why clients choose Gusto Aluminum. Our coatings are tested against the harshest reagents.
| Test Item | Standard / Requirement | Result/Performance |
| MEK Resistance | ASTM D5402 | > 100 Rubs (No coating removal) |
| Salt Spray Resistance | ASTM B117 | 1000–3000 Hours (No blistering/corrosion) |
| Acid Resistance | 5% $HCl$ for 24h | No visual change |
| Alkali Resistance | 5% $NaOH$ for 24h | No visual change |
| Boiling Water Resistance | 100°C for 1 Hour | No peeling or discoloration |
Key Features of Coated Aluminum Coil
- Lightweight: Aluminum is 1/3 the weight of steel, reducing logistics costs and structural load.
- Corrosion Resistance: The natural oxide layer of aluminum, coupled with a PVDF coating, creates an impenetrable barrier.
- Workability: It can be cut, slit, punched, and bent without the coating cracking or peeling.
- Recyclability: Aluminum retains its properties indefinitely, making it a sustainable “circular economy” material.
Case Studies: Coated Aluminum in Action
Case 1: The Modern Airport Terminal
Project: International Airport Expansion.
Material: 0.9mm PVDF Coated 3004 Aluminum Alloy.
Outcome: The standing seam roofing system provided a 25-year warranty against coastal salt-air corrosion while maintaining a sleek, metallic silver aesthetic.
Case 2: High-End Kitchen Appliance Line
Project: Premium Refrigerator Production.
Material: PCM (Pre-Coated Metal) Aluminum with Anti-fingerprint Coating.
Outcome: Reduced the manufacturer’s production time by 30% by eliminating their in-house spray painting line.
Usage Scenarios
Where should you deploy coated aluminum coil?
Coastal Regions: Use PVDF coated 5000 series coils to combat salt spray.
Industrial Zones: Use thick-film coatings to resist acid rain and chemical pollutants.
Interior Design: Use PE coated wood-grain coils for a warm aesthetic with fire-resistant properties.
Why Choose Gusto Aluminum as Your Factory Partner?
Buying directly from the factory isn’t just about price—it’s about control.

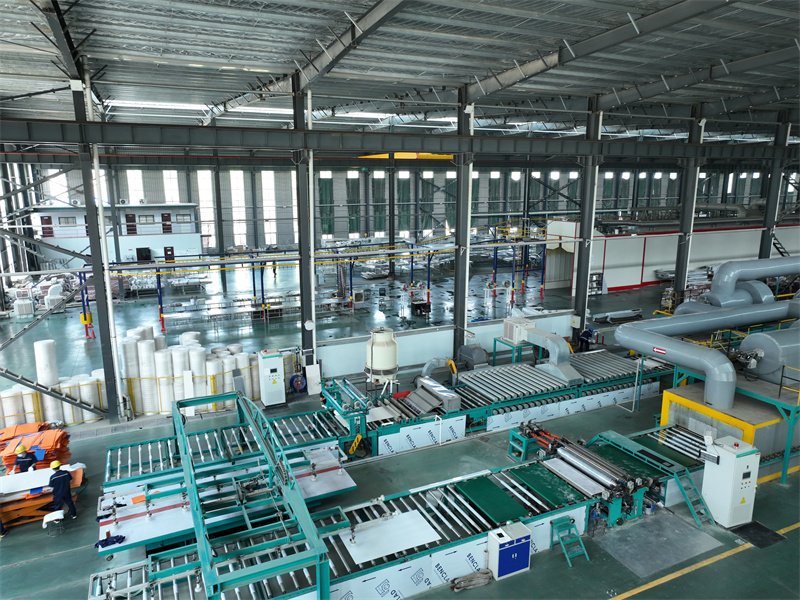

- Integrated Production: From melting and casting to cold rolling and coating, we control the entire supply chain.
- Customization: Need a specific RAL color or a non-standard width? Our production lines are agile.
- Quality Assurance: Every coil comes with a Mill Test Certificate (MTC). We conduct T-bend tests, cross-hatch adhesion tests, and impact tests on every batch.
- Cost Efficiency: By eliminating middlemen, we pass the savings directly to our global partners.
Global Service: Countries We Export To
Gusto Aluminum has a robust logistics network, ensuring that our coated aluminum coils reach your warehouse in perfect condition, regardless of geography.
| Region | Primary Countries Served |
| Southeast Asia | Vietnam, Thailand, Indonesia, Philippines, Malaysia |
| Middle East | UAE, Saudi Arabia, Qatar, Oman, Jordan |
| Americas | USA, Canada, Mexico, Brazil, Chile |
| Europe | Poland, Germany, Italy, Spain, UK |
| Africa | Egypt, South Africa, Nigeria, Kenya |
Ready to Transform Your Project?
At Gusto Aluminum, we combine years of manufacturing expertise with a commitment to customer success. Our coated aluminum coils are more than just raw materials—they are a foundation for your innovation.
Contact us today for a quick quote!
Our technical team is ready to provide samples and detailed specifications tailored to your specific application.
