Aluminium coil 6061 is one of the most popular aluminum products in the world. Manufacturers, engineers, and buyers across dozens of industries choose 6061 aluminum coil for its outstanding combination of strength, formability, corrosion resistance, and machinability.
Whether you need 6061 T6 aluminum coil for aerospace components, automotive parts, structural fabrication, or industrial equipment, this guide covers everything you need to know. We cover alloy composition, temper differences, mechanical properties, specifications, applications, and how to choose the right supplier.
What Is Aluminum 6061?
AL6061 is a heat-treatable aluminum alloy. It belongs to the 6xxx series of aluminum alloys. The primary alloying elements are magnesium (Mg) and silicon (Si). These two elements combine to form magnesium silicide (Mg₂Si), which gives 6061 its ability to be strengthened through heat treatment.
6061 aluminum was first developed in 1935. It quickly became one of the most widely used aluminum alloys in the world. Today, it remains the go-to choice for applications that demand high strength, good corrosion resistance, and excellent machinability.
The coil form of 6061 aluminum is produced by rolling the alloy into thin, continuous strips. These strips are wound into coils for easy transport, storage, and further processing. 6061 aluminum coil is the raw material for many downstream products including sheets, plates, strips, and formed parts.
Is 6061 Aluminum High Quality?
Yes. 6061 aluminum is considered a high-quality, premium aluminum alloy. Here is why:
Strong and Durable
6061 offers tensile strength up to 310 MPa in T6 temper. This is significantly stronger than common alloys like 1050, 1060, or 3003. It handles heavy loads and mechanical stress well.
Excellent Corrosion Resistance
6061 resists corrosion in most environments. It performs well in outdoor, marine-adjacent, and industrial conditions. The natural oxide layer protects the surface without additional coating.
Outstanding Machinability
6061 machines cleanly and precisely. It is easy to cut, drill, mill, and turn. This makes it a favorite in precision engineering and CNC machining applications.
Good Weldability
6061 welds well using MIG and TIG processes. Note that welding reduces strength in the heat-affected zone. Post-weld heat treatment can restore some strength.
Versatile and Widely Available
6061 is one of the most widely produced aluminum alloys. It is available in coil, sheet, plate, bar, tube, and extrusion forms worldwide.
Meets International Standards
AL6061 meets ASTM B209, AMS 2770, and other international standards. It is accepted in aerospace, automotive, and structural engineering specifications globally.
Aluminum 6061 Composition
Understanding the aluminum 6061 composition is essential for selecting the right material.
Chemical Composition of AL6061
| Element | Content (%) |
|---|---|
| Aluminum (Al) | Balance (~97%) |
| Magnesium (Mg) | 0.80 – 1.20 |
| Silicon (Si) | 0.40 – 0.80 |
| Copper (Cu) | 0.15 – 0.40 |
| Chromium (Cr) | 0.04 – 0.35 |
| Iron (Fe) | ≤ 0.70 |
| Manganese (Mn) | ≤ 0.15 |
| Zinc (Zn) | ≤ 0.25 |
| Titanium (Ti) | ≤ 0.15 |
| Other elements | ≤ 0.05 each |
Key Composition Notes
Magnesium + Silicon → Strength
The combination of Mg and Si forms Mg₂Si precipitates during heat treatment. These precipitates block dislocation movement in the crystal structure. This is what gives 6061-T6 its high strength.
Copper → Additional Strength
The small copper addition further increases strength and hardness. It also improves machinability.
Chromium → Corrosion Resistance
Chromium addition improves corrosion resistance and helps control grain structure during heat treatment.
What Is the Difference Between 6061 and 6061-T6 Aluminum?
This is one of the most common questions buyers ask. The answer is simple: 6061 refers to the alloy composition. 6061-T6 refers to the alloy plus its temper condition.
Understanding Aluminum Temper
Temper describes the heat treatment and mechanical processing history of the aluminum. It directly affects mechanical properties like strength, hardness, and ductility.
Common 6061 Tempers
| Temper | Description | Tensile Strength | Yield Strength |
|---|---|---|---|
| 6061-O | Annealed (fully soft) | 125 MPa | 55 MPa |
| 6061-T4 | Solution heat treated, naturally aged | 241 MPa | 145 MPa |
| 6061-T6 | Solution heat treated, artificially aged | 310 MPa | 276 MPa |
| 6061-T651 | T6 + stress relieved by stretching | 310 MPa | 276 MPa |
6061 vs 6061-T6: Key Difference
6061 (O temper) is soft and highly formable. It bends and shapes easily. It has low strength.
6061-T6 is hard and strong. It has been solution heat treated and then artificially aged. The Mg₂Si precipitates have formed and hardened the alloy. Strength is about 2.5 times higher than O temper.
For most structural and engineering applications, 6061-T6 is the standard choice.
What Is AL6061 T651?
AL6061 T651 is the same as T6 but with one additional step: stress relieving by stretching. After the T6 heat treatment, the material is stretched 1–3% to relieve internal residual stresses. This makes T651 more dimensionally stable during machining. It is preferred for precision machined parts and thick plates.

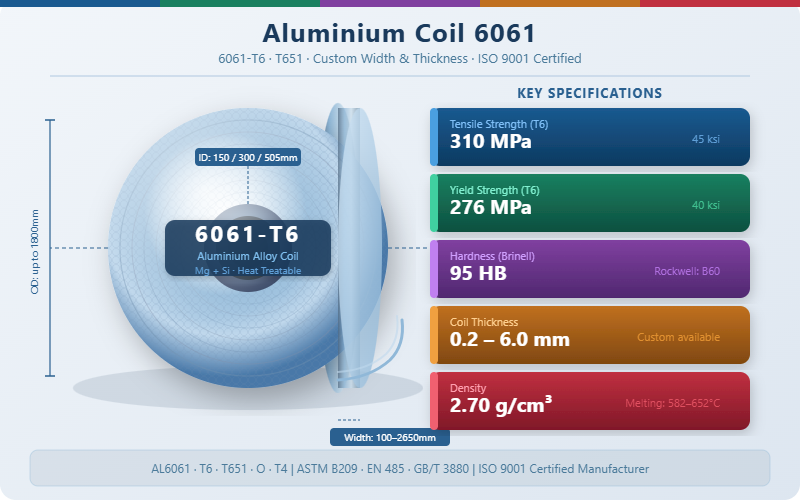

What Are the Specifications of 6061-T6 Aluminum?
Mechanical Properties of 6061-T6 Aluminum Coil
| Property | Value |
|---|---|
| Ultimate Tensile Strength (UTS) | 310 MPa (45 ksi) |
| Yield Strength (0.2% offset) | 276 MPa (40 ksi) |
| Elongation (in 50mm) | 12% |
| Hardness (Brinell) | 95 HB |
| Shear Strength | 207 MPa |
| Fatigue Strength | 96 MPa |
| Elastic Modulus | 68.9 GPa |
Physical Properties of AL6061
| Property | Value |
|---|---|
| Density | 2.70 g/cm³ |
| Melting Range | 582 – 652°C |
| Thermal Conductivity | 167 W/(m·K) |
| Electrical Conductivity | 43% IACS |
| Coefficient of Thermal Expansion | 23.6 µm/m·°C |
| Specific Heat Capacity | 896 J/(kg·K) |

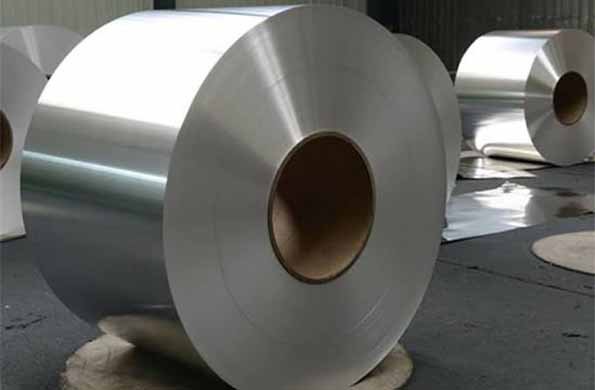

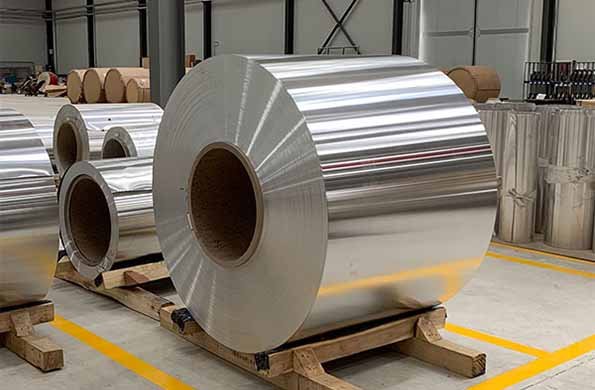

6061 Aluminum Coil Dimensions
We supply 6061 aluminum coil in the following standard dimensions:
Thickness:
- 0.2mm – 6.0mm (standard coil range)
- Thicker material available as plate or sheet
Width:
- 100mm – 2650mm
- Slit coil widths: custom to your requirement
Inner Diameter:
- 150mm, 200mm, 300mm, 405mm, 505mm (standard)
- Custom inner diameter available
Outer Diameter:
- Up to 1800mm
Coil Weight:
- 500kg – 10,000kg per coil (depending on dimensions)
Surface Finish:
- Mill finish
- Bright finish
- Anodized
- Painted / coated
What Is Aluminum 6061 Used For?
6061 aluminum coil serves a wide range of industries and applications. Here are the most important ones:
Aerospace and Aviation
6061 is an approved aerospace material. It appears in:
- Aircraft structural frames
- Wing spars and ribs
- Fuselage components
- Landing gear parts
- Aerospace fittings and brackets
The combination of high strength, low weight, and corrosion resistance makes AL6061 a reliable aerospace material.
Automotive and Transportation
The automotive industry uses 6061 T6 aluminum coil for:
- Body panels and structural components
- Truck frames and chassis parts
- Bicycle frames and components
- Motorcycle parts
- Rail vehicle components
Weight reduction is critical in transportation. 6061 offers steel-like strength at one-third the weight.
Marine Applications
6061 performs well in marine environments. It resists saltwater corrosion effectively. Marine applications include:
- Boat hulls and decks
- Marine fittings and hardware
- Dock structures
- Offshore equipment components
Construction and Architecture
In construction, 6061 aluminum coil is used for:
- Curtain wall systems
- Window and door frames
- Roofing and cladding panels
- Structural support members
- Bridge components
Industrial Equipment and Machinery
Industrial manufacturers rely on 6061 for:
- Machine frames and housings
- Conveyor components
- Hydraulic fittings and manifolds
- Pump and valve bodies
- Tool and die components
Electronics and Electrical
- Heat sinks and thermal management components
- Electronic enclosures and chassis
- Electrical connectors and bus bars
- Computer and server cases
Consumer Products
- Camera bodies and lenses
- Sporting goods (baseball bats, tennis rackets)
- Climbing and outdoor equipment
- Furniture and display fixtures
- Smartphone and tablet casings
Defense and Military
AL6061 T651 meets many military specifications. It is used in:
- Military vehicle components
- Weapon system parts
- Defense equipment frames
- Armored vehicle structures
6061 T6 Coil vs Other Aluminum Alloy Coils
How does 6061 T6 coil compare to other popular aluminum alloys?
| Property | 6061-T6 | 3003-H14 | 5052-H32 | 1050-O |
|---|---|---|---|---|
| Tensile Strength | 310 MPa | 150 MPa | 228 MPa | 76 MPa |
| Yield Strength | 276 MPa | 145 MPa | 193 MPa | 26 MPa |
| Corrosion Resistance | Good | Excellent | Excellent | Excellent |
| Machinability | Excellent | Fair | Fair | Fair |
| Weldability | Good | Excellent | Excellent | Good |
| Formability | Fair | Good | Good | Excellent |
| Heat Treatable | Yes | No | No | No |
| Typical Use | Structural, engineering | Cookware, tanks | Marine, pressure | Cookware, reflectors |
Key takeaway: Choose 6061-T6 when strength and machinability are the priority. Choose 3003 or 5052 when formability and corrosion resistance matter more.
6061 Aluminum Coil Production Process
Understanding how aluminium coil 6061 is made helps you evaluate supplier quality.
Step 1: Alloying and Casting
Raw aluminum is melted and alloyed with the required amounts of Mg, Si, Cu, and Cr. The liquid metal is cast into rolling slabs using direct chill (DC) casting. Chemical composition is verified at this stage.
Step 2: Homogenization
The slabs go into a homogenization furnace. They are heated to around 560°C and held for several hours. This makes the alloy composition uniform throughout the slab.
Step 3: Hot Rolling
The homogenized slab is hot rolled. This reduces the thickness from the slab thickness (typically 500–600mm) down to around 6–8mm. Hot rolling also improves the mechanical properties by refining the grain structure.
Step 4: Cold Rolling
The hot-rolled material is cold rolled to the final thickness. Cold rolling increases strength through work hardening. It also improves surface finish and dimensional precision.

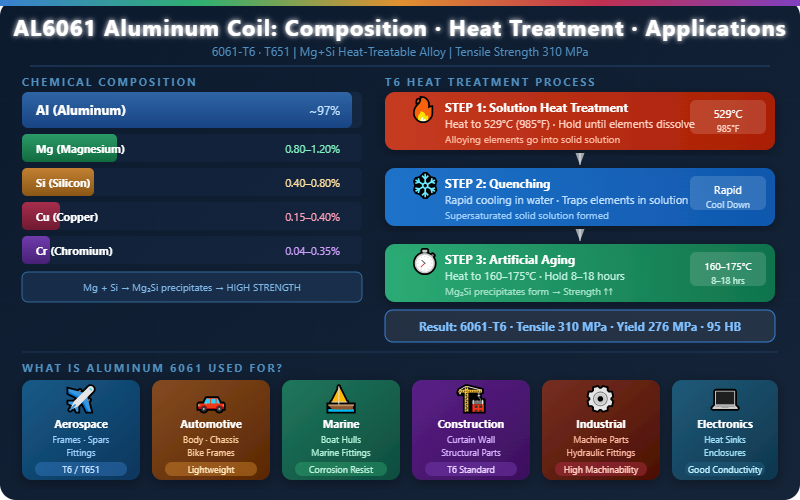

Step 5: Heat Treatment (for T6 Temper)
This is the critical step for 6061-T6 coil:
- Solution Heat Treatment: The coil is heated to 529°C (985°F) and held until the alloying elements dissolve into solution.
- Quenching: The coil is rapidly cooled (quenched). This traps the alloying elements in supersaturated solution.
- Artificial Aging: The quenched material is heated to 160–175°C for 8–18 hours. This causes Mg₂Si precipitates to form. These precipitates dramatically increase strength.
Step 6: Slitting and Cutting
The heat-treated coil is slit to the required width. We can slit 6061 aluminum coil to custom widths from 100mm to 2650mm.
Step 7: Quality Inspection
Every coil goes through:
- Thickness measurement (laser gauge)
- Width check
- Tensile and yield strength testing
- Hardness testing
- Surface quality inspection
- Chemical composition verification (OES spectrometer)
Step 8: Packaging
Coils are wrapped in moisture-proof paper, plastic film, and steel strapping. They ship on wooden pallets or in wooden cases. Custom export packaging is available.
How to Order 6061 Aluminum Coil
When placing an order for 6061 T6 aluminum coil, provide these specifications:
- Alloy: 6061
- Temper: T6, T651, O, T4, or other
- Thickness: in mm (e.g., 1.5mm, 2.0mm, 3.0mm)
- Width: in mm (e.g., 1000mm, 1250mm, 1500mm)
- Inner diameter: 150mm, 200mm, 300mm, etc.
- Coil weight or length: per coil
- Surface finish: mill, bright, anodized, etc.
- Quantity: total weight in metric tons
- Standard: ASTM B209, EN 485, GB/T 3880, or other
- Destination port: for shipping calculation
Why Choose Us for 6061 Aluminum Coil?
We are a professional manufacturer and global exporter of aluminium coil 6061 and other aluminum alloy coils. Here is why buyers worldwide choose us:
Full In-House Production
We control the entire production process. From alloying and casting to rolling, heat treatment, and slitting — everything happens in our facility. This ensures consistent quality and competitive pricing.
Certified Quality
Our 6061 aluminum coil meets:
- ASTM B209
- EN 573 / EN 485
- GB/T 3880
- AMS 2770 (heat treatment)
- ISO 9001:2015
We provide full mill test certificates with every order.
Wide Product Range
We stock and produce 6061 aluminum coil in:
- Tempers: O, T4, T6, T651
- Thickness: 0.2mm – 6.0mm
- Width: 100mm – 2650mm
- Surface: mill, bright, anodized, painted
Competitive Pricing
Direct factory supply means no middlemen. You get the best price for the quality you need. Volume discounts are available for large orders.
Fast Delivery
- Standard stock sizes: 7–15 days
- Custom orders: 20–35 days
- Rush orders: discuss with our sales team
Global Export Experience
We export 6061 T6 coil and 6061 aluminum coil to the USA, Germany, UK, Australia, Canada, UAE, South Korea, Japan, Southeast Asia, and over 60 countries. We handle all export documentation and shipping logistics.
Technical Support
Our engineering team provides:
- Alloy and temper selection advice
- Material certification support
- Third-party inspection coordination (SGS, BV, TÜV)
- Custom specification compliance
Frequently Asked Questions
What is aluminum 6061 used for?
6061 aluminum is used in aerospace structures, automotive parts, marine equipment, bicycle frames, machine components, electronic enclosures, sporting goods, and many other applications. Its combination of high strength, good corrosion resistance, and excellent machinability makes it one of the most versatile aluminum alloys available.
What is the difference between 6061 and 6061-T6 aluminum?
6061 refers to the alloy composition (Mg + Si as main alloying elements). 6061-T6 refers to the same alloy after solution heat treatment and artificial aging. The T6 temper process dramatically increases strength — from about 125 MPa (annealed) to 310 MPa. For structural applications, always specify 6061-T6.
What are the specifications of 6061-T6 aluminum?
6061-T6 has a tensile strength of 310 MPa, yield strength of 276 MPa, elongation of 12%, and Brinell hardness of 95 HB. The alloy density is 2.70 g/cm³. Standard coil thickness ranges from 0.2mm to 6.0mm, width up to 2650mm.
Is 6061 aluminum high quality?
Yes. 6061 aluminum is considered a premium, high-quality alloy. It offers high strength, excellent machinability, good corrosion resistance, and meets strict aerospace and structural standards. It is one of the most trusted aluminum alloys in engineering and manufacturing worldwide.
What is AL6061 T651?
AL6061 T651 is 6061-T6 with an additional stress-relieving step. After T6 heat treatment, the material is stretched 1–3%. This relieves internal stresses from heat treatment. T651 is more dimensionally stable during machining and is preferred for thick plates and precision parts.
Can 6061 aluminum coil be anodized?
Yes. 6061 aluminum coil anodizes very well. The anodized surface provides excellent corrosion protection and can be colored. It is widely used for architectural panels, consumer electronics, and decorative applications.
How does 6061 compare to 3003 aluminum?
6061-T6 is much stronger than 3003 (310 MPa vs 150 MPa). 6061 is better for structural and engineering applications. 3003 is softer, more formable, and better for cookware, tanks, and deep-drawn parts. They serve different markets and applications.
Conclusion
Aluminium coil 6061 is one of the most important and widely used aluminum products in global manufacturing. Its exceptional strength, machinability, corrosion resistance, and versatility make it the top choice for aerospace, automotive, marine, construction, and industrial applications.
Whether you need 6061 T6 coil, 6061 T651, or other temper options, choosing the right supplier ensures consistent quality and reliable supply.
We offer a complete range of 6061 aluminum coil products with full certifications, competitive factory pricing, and fast global delivery. Contact us today for a free quote. Send us your thickness, width, temper, quantity, and destination. We respond within 24 hours.
