What Are Aluminum Diamond Sheets?
Aluminum diamond sheets are aluminum plates with a raised diamond-shaped pattern on one side. The pattern consists of small raised lozenges or teardrop shapes arranged in a regular grid. This texture is pressed into the aluminum surface during the rolling process.
The raised pattern gives the sheet two key advantages:
- Anti-slip performance: The raised diamonds provide grip underfoot or under loads
- Decorative appearance: The pattern creates an attractive, industrial look
Aluminum diamond plate sheets go by several names:
- Aluminum diamond sheets
- Aluminum tread plate
- Aluminum checker plate
- Aluminum floor plate
- Diamond cut aluminum sheets
All these terms refer to the same product — flat aluminum sheet with a raised diamond or lozenge pattern on one surface.
Aluminum diamond sheets are lightweight, strong, and corrosion-resistant. They are easier to handle and install than steel tread plate. They do not rust. These qualities make them popular in construction, transportation, industrial, and commercial applications worldwide.
Aluminum Diamond Plate Sheets 4×8 — The Most Popular Size
Aluminum diamond plate sheets 4×8 are the most widely used standard size. “4×8” means 4 feet wide by 8 feet long (approximately 1220 mm × 2440 mm).
Why 4×8 Is the Standard Size
The 4×8 format is a universal sheet metal standard. It fits standard:
- Truck beds and trailers
- Flooring panels
- Wall cladding sections
- Ramp widths
- Storage unit panels
The 4×8 size is easy to handle with two workers. It fits standard flatbed trucks for delivery. It minimizes waste when cutting standard architectural panels.
Common Thicknesses for 4×8 Aluminum Diamond Plate Sheets
| Thickness (inches) | Thickness (mm) | Common Use |
|---|---|---|
| 1/16″ (0.063″) | 1.6 mm | Decorative, light duty wall panels |
| 3/32″ (0.090″) | 2.3 mm | Light floor covering, tool boxes |
| 1/8″ (0.125″) | 3.2 mm | Most popular — truck beds, ramps |
| 3/16″ (0.188″) | 4.8 mm | Heavy floor plates, industrial use |
| 1/4″ (0.250″) | 6.4 mm | Structural floor plates, heavy duty |
| 3/8″ (0.375″) | 9.5 mm | Very heavy duty structural use |
Weight of 4×8 Aluminum Diamond Plate Sheets
| Thickness | Approximate Weight per Sheet |
|---|---|
| 1/8″ | ~10.5 kg (23 lbs) |
| 3/16″ | ~15.8 kg (35 lbs) |
| 1/4″ | ~21.0 kg (46 lbs) |
| 3/8″ | ~31.5 kg (69 lbs) |
Most popular choice: 4×8 aluminum diamond plate at 1/8″ (3.2 mm) thickness. It balances strength, weight, and cost for most truck bed, ramp, and flooring applications.
Aluminum Diamond Plate Sheets 4×4
Aluminum diamond plate sheets 4×4 measure 4 feet × 4 feet (approximately 1220 mm × 1220 mm). This square format suits specific applications where a shorter panel works better.
When to Choose 4×4 Diamond Plate Sheet
- Small ramps: Wheelchair ramps, vehicle loading ramps
- Platform sections: Machine bases, equipment platforms
- Decorative panels: Wall accents, column cladding
- Tool box lids: Custom storage boxes
- Patch repairs: Replacing worn floor sections
Common Thicknesses for 4×4 Aluminum Diamond Plate Sheets
| Thickness | Best Application |
|---|---|
| 1/8″ (3.2 mm) | Light ramps, decorative panels |
| 3/16″ (4.8 mm) | Medium-duty platforms |
| 1/4″ (6.4 mm) | Heavy-duty floor plates |
4×4 vs 4×8 — Which Size Do You Need?
| Factor | 4×4 Sheet | 4×8 Sheet |
|---|---|---|
| Area | 16 sq ft | 32 sq ft |
| Weight | ~Half of 4×8 | Standard |
| Handling | Easier (one person) | Two people recommended |
| Best for | Small areas, ramps | Large floors, truck beds |
| Waste | Less for square areas | Less for rectangular areas |
Aluminum Diamond Plate Sheets 4×10
Aluminum diamond plate sheets 4×10 measure 4 feet × 10 feet (approximately 1220 mm × 3050 mm). This longer format suits applications that need extra length.
When to Choose 4×10 Aluminum Diamond Plate Sheets
- Long truck beds: Full-length bed liners for pickup trucks and commercial trucks
- Trailer floors: Full trailer floor coverage with fewer seams
- Loading ramps: Long ramps for vehicles and equipment
- Boat decks: Deck panels for larger boats
- Industrial walkways: Long continuous walkway sections
Advantages of 4×10 Over 4×8
- Fewer seams: Longer sheets mean fewer joints in the finished installation
- Less waste: Better fit for long applications without extra cutting
- Cleaner appearance: Continuous surface looks more professional
Common Thicknesses for 4×10 Aluminum Diamond Plate Sheets
| Thickness | Weight per Sheet (approx.) |
|---|---|
| 1/8″ (3.2 mm) | ~13.2 kg (29 lbs) |
| 3/16″ (4.8 mm) | ~19.8 kg (44 lbs) |
| 1/4″ (6.4 mm) | ~26.4 kg (58 lbs) |

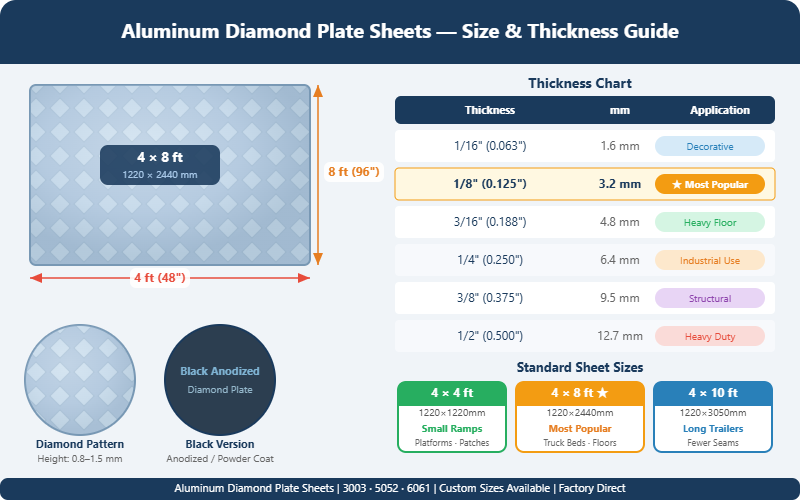

Aluminum Diamond Plate Thickness Chart
This is one of the most searched topics for aluminum diamond sheets. Here is a complete aluminum diamond plate thickness chart covering standard sizes and their applications.
Full Thickness Chart
| Thickness (Fraction) | Thickness (Decimal) | Thickness (mm) | Weight per sq ft | Typical Application |
|---|---|---|---|---|
| 1/16″ | 0.063″ | 1.6 mm | 0.27 kg | Decorative panels, light wall cladding |
| 3/32″ | 0.090″ | 2.3 mm | 0.39 kg | Tool box covers, light floor use |
| 1/8″ | 0.125″ | 3.2 mm | 0.54 kg | Most popular — trucks, ramps, floors |
| 3/16″ | 0.188″ | 4.8 mm | 0.81 kg | Heavy floor plates, stairs |
| 1/4″ | 0.250″ | 6.4 mm | 1.08 kg | Industrial floors, structural use |
| 5/16″ | 0.313″ | 7.9 mm | 1.35 kg | Heavy structural applications |
| 3/8″ | 0.375″ | 9.5 mm | 1.62 kg | Very heavy duty structural |
| 1/2″ | 0.500″ | 12.7 mm | 2.16 kg | Maximum heavy duty |
How to Read This Chart
Step 1: Identify your load requirements
- Light decorative use → 1/16″ to 3/32″
- General floor and ramp use → 1/8″ to 3/16″
- Heavy industrial use → 1/4″ and above
Step 2: Check weight limits
- Heavier sheets cost more and are harder to install
- Choose the thinnest sheet that meets your strength requirement
Step 3: Match to your standard sheet size
- 4×8, 4×4, or 4×10 — choose the size that minimizes waste
Metric Thickness Chart (mm)
| Thickness (mm) | Closest Imperial | Application |
|---|---|---|
| 1.5 mm | ~1/16″ | Decorative |
| 2.0 mm | ~5/64″ | Light duty |
| 2.5 mm | ~3/32″ | Medium light |
| 3.0 mm | ~1/8″ | General purpose |
| 4.0 mm | ~5/32″ | Medium heavy |
| 5.0 mm | ~3/16″ | Heavy duty |
| 6.0 mm | ~1/4″ | Industrial |
| 8.0 mm | ~5/16″ | Structural |
| 10.0 mm | ~3/8″ | Very heavy |
Black Aluminum Diamond Plate Sheets
Black aluminum diamond plate sheets are a popular variation of standard aluminum diamond plate. They have all the structural properties of regular aluminum diamond sheets but with a black surface finish.
How Are Black Aluminum Diamond Plates Made?
There are two main methods:
1. Black Anodizing
The aluminum surface goes through an anodizing process. Then a black dye is absorbed into the anodized layer. The result is a hard, uniform black surface that is:
- Scratch-resistant
- UV-stable
- Permanent (the color is part of the aluminum, not a coating)
2. Black Powder Coating
A black powder coat paint is electrostatically applied and then oven-cured. This produces:
- A thicker coating
- Good scratch resistance
- Wide color matching options
3. Black Paint Coating
A simpler, lower-cost option. Less durable than anodizing or powder coating.
Why Choose Black Aluminum Diamond Plate Sheets?
- Aesthetic appeal: Black diamond plate looks sleek and modern
- Commercial vehicles: Popular for truck running boards, fender flares, step plates
- Interior design: Used in industrial-style interiors, bars, restaurants
- Tool boxes: Black finish hides scratches better than bare aluminum
- Automotive aftermarket: Popular for custom vehicle builds
Black vs Standard Aluminum Diamond Plate
| Feature | Standard (Mill Finish) | Black Anodized |
|---|---|---|
| Surface | Bright silver | Matte or satin black |
| Durability | Good | Better (harder surface) |
| Scratch visibility | More visible | Less visible |
| UV resistance | Good | Excellent |
| Cost | Lower | Higher |
| Best use | Industrial, structural | Decorative, automotive |
Diamond Cut Aluminum Sheets
Diamond cut aluminum sheets refer to aluminum sheets where the diamond pattern is created through a cutting or machining process rather than rolling. This produces a sharper, more defined pattern with a bright, reflective finish.
Diamond Cut vs Standard Diamond Plate
| Feature | Standard Diamond Plate | Diamond Cut Aluminum |
|---|---|---|
| Pattern creation | Hot/cold rolling | CNC machining or cutting |
| Pattern sharpness | Rounded edges | Sharp, precise edges |
| Surface finish | Mill finish | Bright, reflective |
| Anti-slip | Good | Moderate |
| Decorative quality | Standard | Premium |
| Cost | Lower | Higher |
| Common use | Industrial flooring | Decorative, architectural |
Applications of Diamond Cut Aluminum Sheets
- Luxury vehicle interiors
- High-end tool boxes and cases
- Decorative wall panels
- Retail display fixtures
- Premium furniture accents
Common Alloys for Aluminum Diamond Sheets
The alloy determines the strength, corrosion resistance, and formability of aluminum diamond plate sheets. Here are the most common alloys.
3003 Alloy — Most Common
- Composition: Aluminum + Manganese (Mn ~1.2%)
- Strength: Medium (tensile strength ~130 MPa)
- Corrosion resistance: Excellent
- Formability: Very good
- Cost: Moderate
- Best for: General purpose flooring, truck beds, ramps, decorative use
- Temper: H22, H24 (most common)
5052 Alloy — Higher Strength
- Composition: Aluminum + Magnesium (Mg ~2.5%)
- Strength: Higher (tensile strength ~228 MPa)
- Corrosion resistance: Excellent (especially marine environments)
- Formability: Good
- Cost: Moderate-high
- Best for: Marine applications, heavy-duty floors, structural use
- Temper: H32, H34
6061 Alloy — Structural Grade
- Composition: Aluminum + Magnesium + Silicon
- Strength: High (tensile strength ~310 MPa in T6)
- Corrosion resistance: Good
- Formability: Moderate
- Cost: Higher
- Best for: Structural applications, aerospace, heavy industrial
- Temper: T6

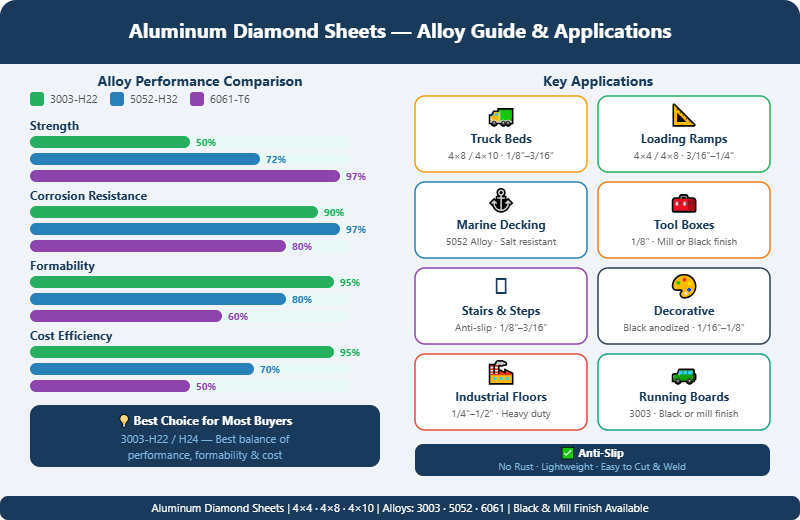

Alloy Comparison Table
| Alloy | Strength | Corrosion Resistance | Cost | Best Application |
|---|---|---|---|---|
| 3003-H22 | Medium | Excellent | $ | General flooring, trucks |
| 3003-H24 | Medium-High | Excellent | $ | Ramps, decorative |
| 5052-H32 | High | Excellent | $$ | Marine, heavy duty |
| 6061-T6 | Very High | Good | $$$ | Structural, aerospace |
For most buyers: 3003-H22 or 3003-H24 aluminum diamond sheets offer the best balance of performance and cost.
Key Properties of Aluminum Diamond Plate Sheets
Anti-Slip Performance
The raised diamond pattern increases surface friction. It reduces slip risk on:
- Wet floors
- Oily surfaces
- Inclined ramps
- Vehicle steps
The pattern height is typically 0.8–1.5 mm above the base surface.
Lightweight
Aluminum weighs about one-third as much as steel. A 4×8 aluminum diamond sheet at 1/8″ thickness weighs about 23 lbs (10.5 kg). The equivalent steel tread plate weighs about 70 lbs (32 kg).
This weight advantage means:
- Lower installation labor cost
- Less structural support needed
- Lower shipping costs
- Better fuel efficiency when used in vehicles
Excellent Corrosion Resistance
Aluminum naturally forms a protective oxide layer. Aluminum diamond sheets do not rust. They work well in:
- Outdoor environments
- Wet areas
- Coastal and marine environments
- Chemical exposure (with proper alloy selection)
Good Strength
Despite being lightweight, aluminum diamond plate sheets carry significant loads. The combination of the diamond pattern and aluminum alloy creates a rigid, load-bearing surface.
Easy to Fabricate
Aluminum diamond sheets are easy to:
- Cut (circular saw, jigsaw, or plasma cutter)
- Drill
- Bend
- Weld (TIG or MIG)
- Fasten (screws, rivets, adhesives)
Low Maintenance
The smooth aluminum surface is easy to clean. No painting or rust treatment is needed. Occasional cleaning with mild soap and water keeps the surface looking good.
Recyclable
Aluminum is 100% recyclable. Aluminum diamond plate sheets can be fully recycled at the end of their service life. This reduces environmental impact and material cost.
Applications of Aluminum Diamond Sheets
Aluminum diamond sheets serve a huge range of industries and applications. Here are the most common uses.
1. Truck Beds and Trailer Floors
Aluminum diamond plate sheets 4×8 and 4×10 are widely used to line truck beds and trailer floors. The diamond pattern provides grip for cargo. The aluminum resists corrosion from outdoor exposure.
2. Loading Ramps
Portable and fixed loading ramps use aluminum diamond plate sheets. The anti-slip surface is essential for safely loading vehicles, equipment, and goods.
3. Stairs and Step Treads
Aluminum diamond sheets cover stair treads in industrial facilities, commercial buildings, and vehicles. The raised pattern prevents slipping on stairs.
4. Running Boards and Side Steps
Pickup trucks and SUVs use aluminum diamond plate for running boards and side steps. The anti-slip surface is safe for passengers entering and exiting the vehicle.
5. Tool Boxes and Storage Cases
Aluminum diamond plate sheets are the standard material for:
- Truck tool boxes
- Equipment cases
- Storage cabinets
- Job site boxes
The diamond pattern adds rigidity and an attractive appearance.
6. Flooring in Commercial Vehicles
Ambulances, fire trucks, police vehicles, and work vans use aluminum diamond plate for interior flooring. It is durable, easy to clean, and non-slip.
7. Marine Decking
Boats and docks use 5052 aluminum diamond plate for decking. The marine-grade alloy resists saltwater corrosion. The non-slip surface is essential for safety on wet boat decks.
8. Wall and Column Protection
Aluminum diamond plate sheets protect walls and columns in warehouses, factories, and parking garages from forklift and vehicle damage.
9. Decorative Applications
Black aluminum diamond plate sheets and diamond cut aluminum sheets are used for decorative purposes in:
- Restaurant and bar interiors
- Retail stores
- Custom vehicle builds
- Furniture and fixtures
10. Architectural Cladding
Architects specify aluminum diamond sheets for building facades and feature walls. The pattern creates visual interest and texture.
How to Choose the Right Aluminum Diamond Sheet
Use this guide to select the correct aluminum diamond plate sheet for your project.
Step 1: Choose the Right Size
| Project | Recommended Size |
|---|---|
| Truck bed liner | 4×8 or 4×10 |
| Small ramp | 4×4 |
| Trailer floor | 4×10 (fewer seams) |
| Wall panel | 4×8 |
| Custom size | Request cut-to-size |
Step 2: Choose the Right Thickness
| Application | Recommended Thickness |
|---|---|
| Decorative wall panels | 1/16″ – 1/8″ |
| Tool box covers | 1/8″ |
| Light ramps | 1/8″ – 3/16″ |
| Truck bed floors | 1/8″ – 3/16″ |
| Heavy-duty ramps | 3/16″ – 1/4″ |
| Industrial floors | 1/4″ and above |
Step 3: Choose the Right Alloy
| Environment | Recommended Alloy |
|---|---|
| General use | 3003-H22 or H24 |
| Marine / coastal | 5052-H32 |
| Heavy structural | 6061-T6 |
| Decorative (black) | 3003 anodized |
Step 4: Choose the Right Finish
| Preference | Finish Option |
|---|---|
| Standard industrial | Mill finish (bright silver) |
| Sleek modern look | Black anodized |
| Premium decorative | Polished or diamond cut |
Step 5: Calculate Your Quantity
Measure your project area carefully. Add 10–15% extra for cutting waste and overlaps. This prevents running short during installation.
Why Choose Us as Your Aluminum Diamond Sheet Manufacturer
We are a professional manufacturer and exporter of aluminum diamond sheets with over 15 years of production experience. Customers in construction, transportation, marine, and industrial sectors trust our products worldwide.
✅ Wide Size Range
We supply aluminum diamond plate sheets in:
- Standard sizes: 4×8, 4×4, 4×10 and more
- Custom sizes available (cut to your exact dimensions)
- Thickness: 1/16″ to 1/2″ (1.5 mm to 12 mm)
- Width: up to 2000 mm
- Length: up to 6000 mm
✅ Multiple Alloy Options
We stock 3003, 5052, and 6061 aluminum diamond sheets. All materials come with full mill test certificates.
✅ Multiple Finish Options
- Mill finish (standard bright aluminum)
- Black aluminum diamond plate sheets (anodized or powder coated)
- Polished finish
- Custom colors available
✅ Strict Quality Control
Every sheet goes through:
- Dimensional inspection
- Pattern height verification
- Surface quality check
- Mechanical property testing
✅ Competitive Factory Pricing
As a direct manufacturer, we offer factory prices. No middlemen. Better value for your business.
✅ Cut-to-Size Service
We cut aluminum diamond sheets to your exact dimensions. This saves you cutting time and reduces waste on your job site.
✅ Fast Lead Time
- Standard sizes (in stock): 5–10 business days
- Custom sizes: 10–20 business days
✅ Global Export Experience
We export aluminum diamond plate sheets to the USA, Canada, Australia, UAE, South Africa, and over 40 countries worldwide. We handle all export documentation and provide proper export packaging.
Frequently Asked Questions (FAQ)
Q: What is the most popular size for aluminum diamond plate sheets?
A: 4×8 at 1/8″ thickness is the most popular. It works for truck beds, ramps, and general flooring.
Q: What is the difference between 3003 and 5052 aluminum diamond plate?
A: 3003 is the standard general-purpose alloy — lower cost, good corrosion resistance, excellent formability. 5052 is stronger and better for marine and high-corrosion environments. Choose 5052 for coastal and marine applications.
Q: Can aluminum diamond plate be used outdoors?
A: Yes. Aluminum naturally resists corrosion and does not rust. It performs well outdoors with no special treatment needed.
Q: How do I cut aluminum diamond plate sheets?
A: Use a circular saw with a fine-tooth carbide blade, a jigsaw with a metal blade, or a plasma cutter. Always cut with the diamond pattern facing down to prevent surface scratching.
Q: What does H22 and H24 temper mean?
A: H22 and H24 are strain-hardened tempers. H22 is slightly softer (1/4 hard). H24 is harder (1/2 hard). H24 is more common for diamond plate because it is stiffer and more rigid underfoot.
Q: Can you weld aluminum diamond plate?
A: Yes. Use TIG or MIG welding with 4043 or 5356 filler wire depending on the alloy. Clean the surface thoroughly before welding.
Q: Do you supply black aluminum diamond plate sheets?
A: Yes. We supply black anodized and black powder-coated aluminum diamond plate sheets in standard and custom sizes.
Q: What is your minimum order quantity?
A: Our standard MOQ is 1 metric ton. We can discuss smaller orders for new customers or special projects.
Conclusion
Aluminum diamond sheets are one of the most versatile and practical metal products available. Whether you need 4×8 aluminum diamond plate sheets for a truck bed, 4×4 diamond plate sheets for a ramp, 4×10 sheets for a trailer floor, or black aluminum diamond plate sheets for a custom build, we have the right product for your application.
Use our aluminum diamond plate thickness chart to select the right thickness. Choose the right alloy for your environment. And contact us for factory-direct pricing, free samples, and cut-to-size service.
Our team responds within 24 hours. Get your free quote today.
